Quick Details

  • Type: Portable Ultrasonic Diagnostic Devices
  • Brand Name: OEM
  • Model Number: RUS-9000B
  • Place of Origin: Beijing, China (Mainland)
  • Model: RUS-9000B
  • Color: White
  • Screen size: 12 inch
  • Certificates: CE and ISO13485
  • Weight: 8.5KGS
  • Carton package dimension: 43*33*42cm
  • Origin: Beijing, China
  • Probe optional: convex probe linear transvaginal
  • Keyword: Ultrasound Scanner
  • Probe connector: two

Packaging & Delivery

Packaging Details Standard export Carton with foam, or as per your request.
Delivery Time 2 days after confirming the payment



Product Description

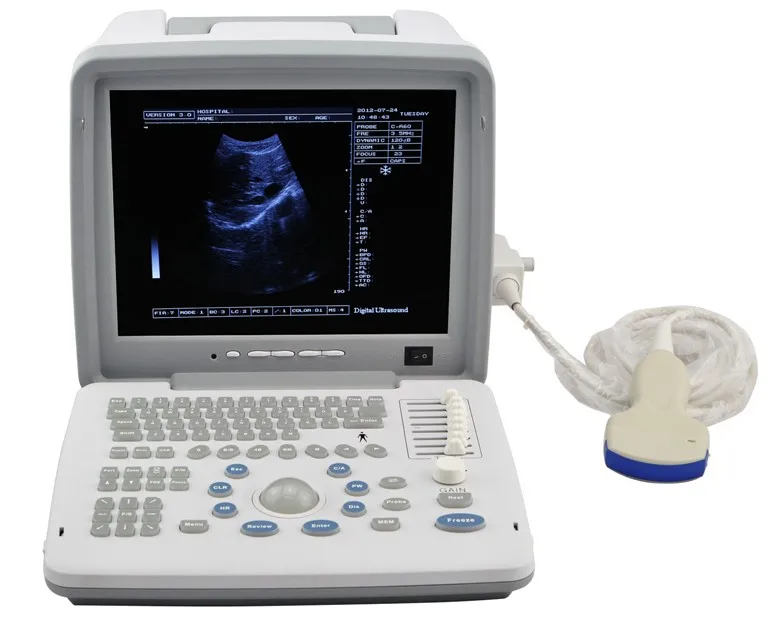

 CE approved Portable Ultrasound Scanner with 3.5Mhz multi-frequency convex probe Diagnostic ultrasound

Features:

  • Full digital imaging technology

               DBF: Digital Beam Forming

               RDA: Real-time dynamic aperture imaging

               DRA: Dynamic real-time acoustic apodizer

               DRF: Dynamic receiving focus

               DFS: Dynamic frequency scanning

  • Ensure that the image is not distorted, edge clearer, level richer
  • Humanized operating design
  • 8 sections TGC gain adjustment
  • With abundant built-in software packages
  • Comprehensive software measurement capabilities, to allow more extensive clinical application
  • Two probe/three probe connectors (optional)
  • Probe connected with a variety of choice to achieve maximum functionality.
  • Excellent value for money
  • VLSI, advanced technology, stable performance
  • Reasonable cost control, to achieve the perfect embodiment of price and performance

Specification:

  • Image mode: B, B/B, 4B, B+M, M
  • Image magnification: *0.8, *1.0, *1.2, *1.5, *1.8, *2.0
  • Local zoom: 2 times local zoom in real time
  • Dynamic range: 64dB – 96dB adjustable
  • Focus: 4-segments dynamic electronic focuses selected
  • Gray scale: 256
  • Pre-processing: variable aperture, image direction, dynamic filter, edge enhancement, etc.
  • Post-processing: digital space time filter, 8 y corrections, 16 Pseudo Colors, column correlation, frame correlation, spot correlation, linear interpolation, etc.
  • Multi-frequency: 2.5MHz/3.0MHz/3.5MHz/4.0MHz etc. Multi-frequency selected
  • Measurement: distance, circumference/acreage, HR, pregnancy week (BPD, GS, CRL, FL, AC) and calculating fetus weight, etc.
  • Annotation: Chinese/English interface transition; hospital name, doctors/patients name, case number, gender, age; 16 body marks with probe location, full screen character annotation, real time clock display
  • Puncture lead: Image B: Puncture guide line under B mode
  • Gain adjustment: 8-segments TGC adjustment, GAIN adjustment or near field, far field, overall gain adjustable
  • Image reverse: left/right, black/white, up/down
  • Storage: 128 images permanent storage
  • Cine loop: 256 images real time display cycling/one-by-one checked

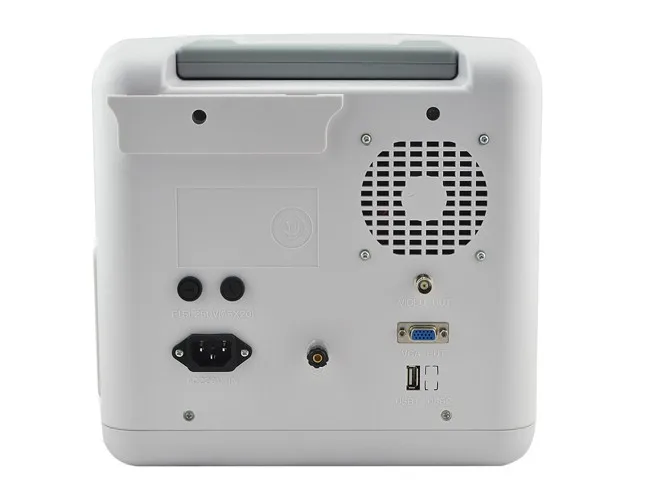

  • Output interface: 2 SVGA video outputs, SVGA color monitor circumscribed; 2 PAL video outputs, which can be connected with PAL standard monitor, Video thermal recorder, ultrasound image workstation, etc.
  • Optional features: multiple probes connectable, USB port, Video thermal recorder
  • Probe connectors: 2 socket, multiple probes connectable

Standard configuration:

  • 12-inch LCD monitor
  • 2 probe connector
  • 1 USB
  • 80 elements R60, 3.5MHz multi-frequency convex probe

Optional:

  • High frequency linear probe
  • Electronic trans-vaginal probe
  • Rectal probe
  • Video thermal recorder
  • External Ultrasound image working station, etc.
